Product | UNIT PRICE | Delivery |
---|---|---|
RF100I MK2.21 -1/+3bar 1/2 ax K1,0 D431 | $ 401.52 | 9 - 11 Weeks |
DMU 01 VM 0/25bar G1/2B | $ 356.74 | 7 - 9 Weeks |
31289 | $ 449.48 | 7 - 9 Weeks |
31614 | $ 212.03 | 8 - 10 Weeks |
Manufacturer | Afriso |
---|---|
Country | |
Part number | 31282 |
Inner Code | 4288237 |
Technical specification | casing : Standard slide-in housing W x H x D: 96 x 48 x 135 mm Control panel cutout : W x H: 92 x 45 mm Supply voltage : ALLPOWER AC / DC 20-253 V. Power consumption : max. 5 VA Display : 5-digit graphic LCD display Sensor supply : Integrated, galvanically isolated supply voltage for transmitter: DC 20 V / 20 mA Sensor input : All analog standard signals Outputs : Analog output 1: 0 (4) -20 mA, galvanically isolated Analog output 2: 0-10 V, galvanically isolated 2 x potential-free relay outputs (changeover contact) Contact load AC 250 V / 2A / 100 VA Arithmetic function : customer-specific linearization (24 points) Electrical connection : Screw terminals, pluggable (1.5 mm²) Operating temperature range : Environment: -10 ° C / + 55 ° C Protection class (front) : IP 65 (EN 60529) |
---|---|
Weight | 1 |
AFRISO-EURO-INDEX

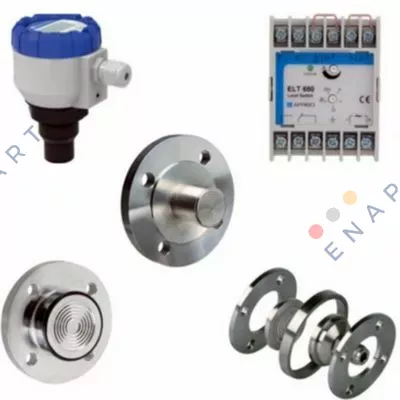

thermometers, indicators, amplifiers, pressure transducers, displays and level switches
