Product | UNIT PRICE | Delivery |
---|---|---|
ME12/50/60-2 | $ 1803.91 | 6 - 8 Weeks |
SAE-GS33-2V / 15609 | $ 2816.4 | 3 - 5 Weeks |
105714 / MVD25-5 | $ 5844.53 | 3 - 5 Weeks |
33551 - MVD50 | $ 4775.41 | 3 - 5 Weeks |
SCE-DN50-2 / 28167 | $ 1300.32 | 3 - 5 Weeks |
UV G 30W-A4 1 | $ 5256.38 | 3 - 5 Weeks |
KF6Y-1 / 28024 | $ 2079.4 | 8 - 10 Weeks |
Manufacturer | Aviteq |
---|---|
Country | |

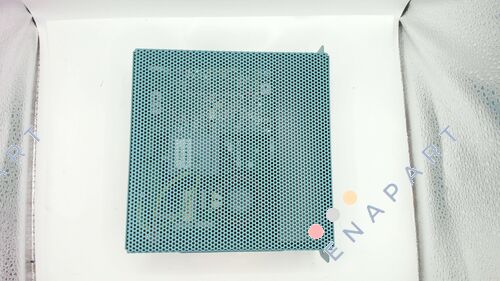

Part number | 26774 - SCE-EN50-2 500..520V 50HZ 15A IP20 |
Inner Code | 425315 |
Custom Code | 85365003 |
Technical specification | Dimensions 200 x 62 x 200 mm (HxWxD) VIBTRONIC® -S controller for connecting AVITEQ vibrating conveyors. The swing width of the conveyor can be adjusted continuously on the connection device become. The flow rate can be adjusted from close to 0 to 100%. With a complete set of potentiometers for manual swing range adjustment. Electromagnetic compatibility (EMC) in accordance with the currently valid EC Directive checked. To protect the thyristors in the controller, there is a install super-fast protection (Superflink or Ultrarapid). Vibration rate SC/E.. 25... 1,500 min-1 SC/E.. 30.. 1,800 min-1 SC/E.. 50... 3,000 min-1 SC/E.. 60.. 3,600 min-1 Version For installation in an on-site control cabinet Perforated steel housing RAL 5018 powder-coated power cable without Network fluctuation compensation ± 10%, the oscillation width remains constant Proportional change in the setpoint Switch release (continuous contact, potential-free) or Voltage signal +24 V (DC) Inputs to external external control variables 0-10V (DC), 0-20mA (DC), 4-20mA (DC) Remote monitoring outputs, relay output Main dimensions approx. H200 x W62 x D200 mm Protection class IP20 according to DIN EN 60529 |
---|---|
Weight | 2.2 |
Vibtronic
AEG Vibrationstechnik
Aviteq Vibrationstechnik
Aviteq Vibrationstechnik (formerly AEG Vibrationstechnik)
vibrators, conveyors and belts
SCE-EN50-2
