Product | UNIT PRICE | Delivery |
---|---|---|
Nr.: 1006-0861-00, Type: SE-HT | $ 242.32 | 6 - 8 Weeks |
1005-9516-00 - GE 0490x0590 | $ 981.67 | 6 - 8 Weeks |
1005-9688-00 | $ 953.11 | 6 - 8 Weeks |
GE/586X920 / 1005-9309-00 | $ 1142.09 | 7 - 9 Weeks |
Nr. 1005-9516-00 Type GE 0490x0590 mm | $ 1024.49 | 5 - 7 Weeks |
1009-8687-00 | $ 1284.15 | 6 - 8 Weeks |
1005-9562-00 | $ 1476.63 | 6 - 8 Weeks |
Manufacturer | Brilex |
---|---|
Country | |
Part number | 1005-9964-00 |
Inner Code | 4193951 |
Custom Code | 73269098 |
Technical specification | Type KE 0629x1004 mm Old Matnr.: 3870215 Type: Fl Bursting Disc With Counter-Fl Size: 629X1004 Bursting area: 6,000 cm2 Option: Default Material: 1.4301 Opening pressure: 0.100 bar Opening temperature: 20.0 °C Opening pressure tolerance +/-: 0.010 bar Vacuum resistance: 500 mmWC Minimum temperature ፦40.0 °C Maximum temperature: 120.0 °C Sealing material: EPDM foam tape Insulation Material Type: None Grounding flap: No |
---|---|
Weight | 5 |
Brilex Iep Technologies Hoerbiger

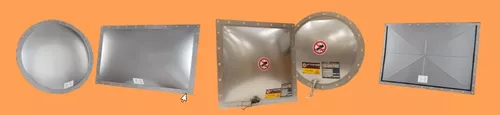

explosion vents, explosion valves and isolation Systems
