All trademarks and brands mentioned are the property of their respective owners. We operate solely as a reseller of these products.
Product | UNIT PRICE | Delivery |
---|---|---|
GE 0586x0920 mm | $ 1098.14 | 6 - 8 Weeks |
Nr.: 1006-0861-00, Type: SE-HT | $ 268.76 | 6 - 8 Weeks |
1005-9516-00 - GE 0490x0590 | $ 1057.23 | 6 - 8 Weeks |
GE/586X920 / 1005-9309-00 | $ 1224.83 | 7 - 9 Weeks |
Nr. 1005-9516-00 Type GE 0490x0590 mm | $ 1100.77 | 5 - 7 Weeks |
1005-9562-00 | $ 1595.13 | 6 - 8 Weeks |
Manufacturer | Brilex |
---|---|
Country | |
Part number | 1006-0117-00 |
Inner Code | 4193949 |
Custom Code | 73269098 |
Technical specification | Type KER 0400x0400 mm Old Matnr.: 3870392 Type: Fl Bursting Disc Without Counter-Fl Size: 400X400 bursting area: 1.550 cm2 Option: Default Material: 1.4301 Opening pressure: 0.100 bar Opening temperature: 20.0 °C Opening pressure tolerance +/-: 0.010 bar Vacuum resistance: 500 mmWC Minimum temperature ፦40.0 °C Maximum temperature: 120.0 °C Sealing material: EPDM foam tape Insulation Material Type: None Grounding flap: No |
---|---|
Weight | 1.51 |
Brilex Iep Technologies Hoerbiger

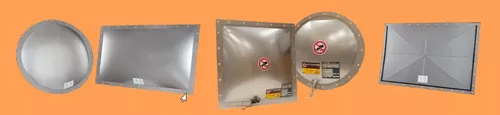

explosion vents, explosion valves and isolation Systems
