AC Compact Frame Axial Fans
Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United States . To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.

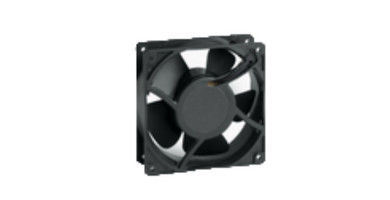

Electronics cooling fans specially designed for control panels and enclosures, the AC Axial Compact Fan range from Enapart online offers:
Compact sizes
Ball & Sleeve Bearing options on many lines
Dust and water protection
A wide selection of airflows
Standard Specifications AC Axial Compact Fan:
Casing Material: Black varnished aluminum
Impeller Material: Black fibreglass reinforced plastic (PBT PC) UL 94V-0
Protection degree: IP20, according to EN 60529 standard
Fixing system: by No 4 M4 screws
Motor protection: Impedance
Storage temperature: from -40°C to +80°C
Rated temperature range: from -40°C to +70°C Lifetime L10 at 40°C: 40,000 h
Electrical connection: 2 leads 22AWG UL 1007, 300 mm long.
Weight: 0.14 kg
Approvals: UL E223195
