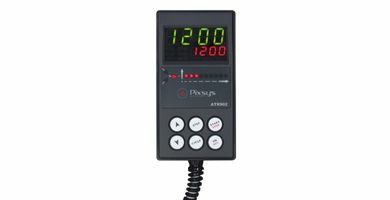

ATR902 | Hand-held Process controller
Enapart, with a presence in 14 countries, sources products from around the world to offer you the best possible prices as a local reseller in the United States . To acquire the best quotation for your desired product, kindly contact us through e-mail or our contact form.
ATR902 is a hand-held programmer specifically designed for automating small hobby or professional kilns often used in ceramics firing , glass fusing or goldsmithing.
ATR902 allows the programming of 15 cycles/curves with time-dependent temperature control. Each cycle can contain up to 18 steps/segments, all freely configurable by the user as up/down/down.
Cycle programming and visualisation are simple and intuitive, even for non-expert operators.
Typical furnace control software functions are provided: Delayed Start, End-of-Step Wait (in case of process delay at the programmed setpoint) and Cycle Recovery Mode (after any power failure).
The multi-pin connector, which is also compatible with the previous ATR900/901 series, allows the user to make an immediate connection/installation. The pin-out specifications are detailed in the documentation and allow manufacturers to correctly set up the corresponding connector on the oven.
The input is programmable for the most common thermocouples and there are two selectable outputs as control or alarm/auxiliary. All options are configurable from the keypad (probe type, alarm mode, cycle programming).
