Product | UNIT PRICE | Delivery |
---|---|---|
CV- 020G.PSO.R | $ 196.81 | 5 - 7 Weeks |
704XX874 | $ 3138.03 | 6 - 8 Weeks |
00.0001.0633.1 | $ 244.9 | 3 - 5 Weeks |
00.0002.A750.1 / Type S1.S29.3.0085.S.25GO.TRJ.I1.1,0M.60 | $ 237.28 | 6 - 8 Weeks |
280XX191 | $ 1014.9 | 1 - 3 Weeks |
Manufacturer | Valco |
---|---|
Country | |
Part number | 00.0002.3770 |
Inner Code | 583631 |
Custom Code | 90261029 |

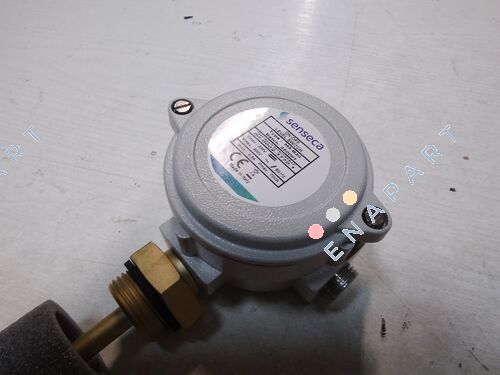

Technical specification | Level Control - Contacts No. 5 Mod. M5.B20.3.0850.O.25GO.W2L1.I22222.830.630.530.240.190 Type B20 float - Spansil material, butadiene copolymer acrylonitrile Brass rod 1" Gas-M connection - brass material Seal material: NBR Max working pressure 20 bar Max working temperature 105°C Total length L0 = 850 mm. Intervention rates in mm and contact situation in the absence of level: L1 = 830 = Contact type = NC L2 = 630 = Contact type = NC L3 = 530 = Contact type = NC L4 = 240 = Contact type = NC L5 = 180 = Contact type = NC Contact wiring = separate Max electrical load: Type 3 contact = 300VCA/70VA/0.5A - 350Vcc/50W/0.7A Electrical output type W2 Die-cast aluminum case with epoxy coating ½” Gas-F cable entry Degree of protection IP65 |
---|---|
Weight | 2 |
Valco Cincinnati
Valco Melton
valves, flowmeters, pump motors, probs, filters, sensors, regulators and repair kits
