Product | UNIT PRICE | Delivery |
---|---|---|
CV- 020G.PSO.R | $ 196.81 | 5 - 7 Weeks |
704XX874 | $ 3138.03 | 6 - 8 Weeks |
00.0001.0633.1 | $ 244.9 | 3 - 5 Weeks |
00.0002.A750.1 / Type S1.S29.3.0085.S.25GO.TRJ.I1.1,0M.60 | $ 237.28 | 6 - 8 Weeks |
280XX191 | $ 1014.9 | 1 - 3 Weeks |
Manufacturer | Valco |
---|---|
Country | |

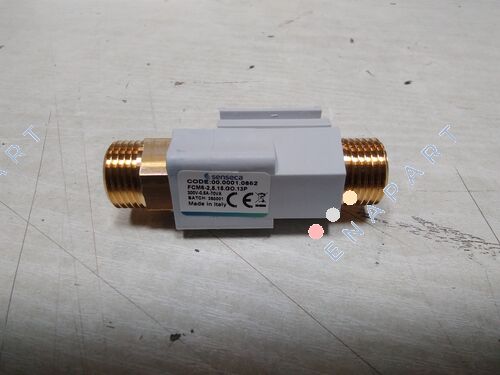

Part number | FCM6-2,5.15.GO.13P |
Inner Code | 4759098 |
Custom Code | 90261029 |
Technical specification | horizontal or vertical mounting with flow from bottom to top> Brass body 1/2" Gas-M process connections Piston sensitive element Max working pressure 250 bar Max working temperature 90°C Fixed calibration, see available calibrations as per the technical bulletin Maximum recommended flow 25 l/min H2O Pressure loss at the maximum recommended flow rate 0.5 bar Replaceable and replaceable electric head - without removing the flow switch from the pipeline Contact Reed NA Maximum electrical loads: 300VCA-DC/70VA/50W/0.5A Electrical output: Faston 6.3 km Replaceable and replaceable electric head - without removing the flow switch Degree of protection IP00 nos. cod. 00.0001.0662 |
---|---|
Weight | 0.17 |
Valco Cincinnati
Valco Melton
valves, flowmeters, pump motors, probs, filters, sensors, regulators and repair kits
